Leírás és Paraméterek
Model

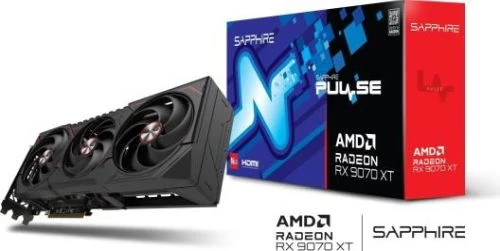

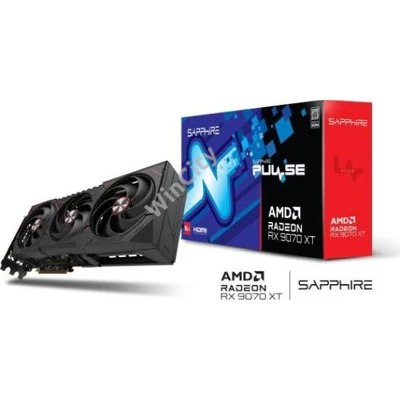

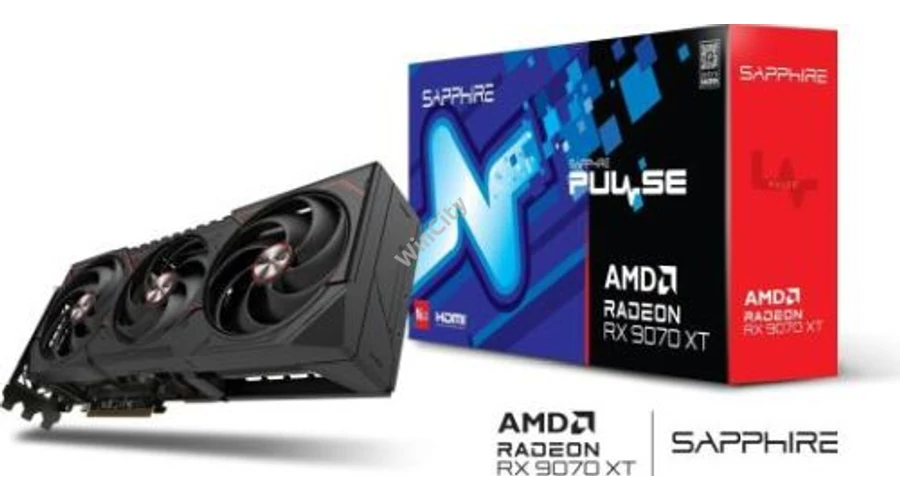

AMD Radeon RX 9070 XT
Memory
16GB GDDR6, 256bit, 20Gbps, 2500MHz, 640GB/?s
clock Base
unknown
clock Boost
2400-2970MHz
overclock
-
Cooling
3x Axial-fan (2x 100mm + 90mm) with 0dB-zero-fan-mode
TDP/TGP
304W (AMD), max. 304W (Sapphire)
AI-computing power (INT8)
779 TOPS
GPU-Computing power
97.32 TFLOPS (FP16), 48.66 TFLOPS (FP32), 3.04 TFLOPS (FP64)
Power connections
2x 8-Pin PCIe
Connectors
2x HDMI 2.1b, 2x DisplayPort 2.1a UHBR13.5
Interface
PCIe 5.0 x16
Special features
AI-acceleration, Backplate, Graphics Cards-Mounting (Sapphire L-shape)
total height
Triple Slot
Dimensions
320x120.25x61.6mm (LxWxH)
Type
PCIe card
Wärmeleitmaterial (TIM)
Honeywell PTM7950
VRM-Design (Manufacturer-declaration)
14-phase digital Power Design
Chip-data
Chip-Architecture
RDNA 4 (from 2025/?Q1)
Chip-title
Navi 48 XTX
Chip-Configuration
64CU (4096SP /? 256TMU /? 128ROP), 64 RT Cores, 64MiB L3 cache
Chip-Manufacturing Process
TSMC 4nm
Chip size
357mm2, monolithisch, 53.9 Mrd. Transistoren
Chip-functions
Raytracing, AMD Infinity cache (64MiB), HDCP 2.3
API-support
DirectX 12 Ultimate (12_2) /? Vulkan 1.3 /? OpenCL 2.2 /? OpenGL 4.6 /? Shader Model 6.8
| Garancia: | 24 hónap |
