Leírás és Paraméterek
GPU

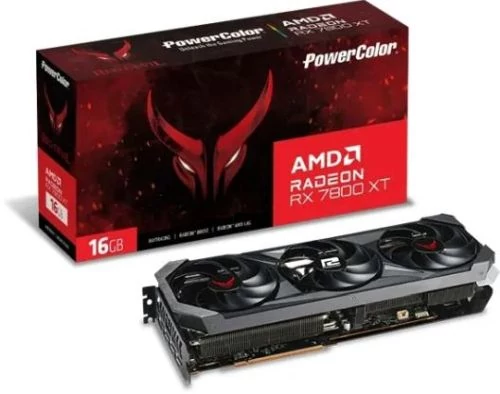

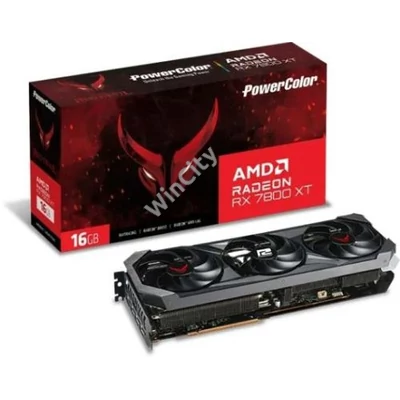

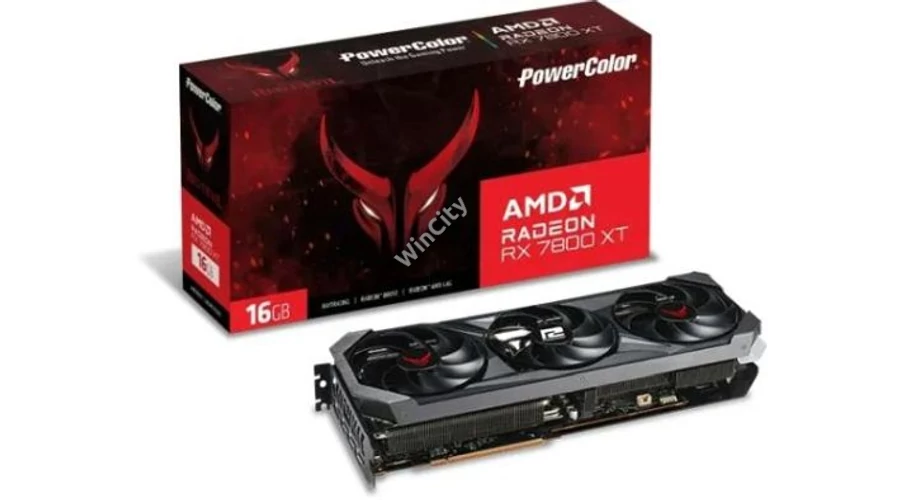

AMD Radeon RX 7800 XT
Memory
16GB GDDR6, 256bit, 19.5Gbps, 2438MHz, 624GB/?s
clock Base
unknown
clock Boost
2169-2475MHz (Standard-Profile), 2254-2565MHz (OC-Profile)
overclock
+135MHz Boost (OC-Profile), +45MHz Boost (Standard-Profile), +130MHz Game (OC-Profile), +45MHz Game (Standard-Profile)
Cooling
3x Axial-fan (100mm) with 0dB-zero-fan-mode (up to 60°C)
TDP/TGP
263W (AMD)
Power connections
2x 8-Pin PCIe
Connectors
1x HDMI 2.1, 3x DisplayPort 2.1 UHBR13.5
Interface
PCIe 4.0 x16
Special features
Taktprofile (STD Mode/?OC Mode), LED lighting (RGB), Backplate
total height
Triple Slot
Dimensions
332x151x52mm (LxWxH)
Type
PCIe card (full height)
PCI slot bracket
full height
Computing power
78.8 TFLOPS (FP16), 39.4 TFLOPS (FP32), 1.23 TFLOPS (FP64)
Chip-data
Chip-Architecture
RDNA 3 (from 2022/?Q4)
Chip-title
Navi 32 XT
Chip-Configuration
60CU (3840SP /? 240TMU /? 96ROP), 60 RT Cores, 4MB L2 cache, 64MB L3 cache
Chip-Manufacturing Process
TSMC 5nm + TSMC 6nm
| Chipset típus | Radeon RX 7800 XT |
| Garancia: | 24 hónap |
