Leírás és Paraméterek
Model

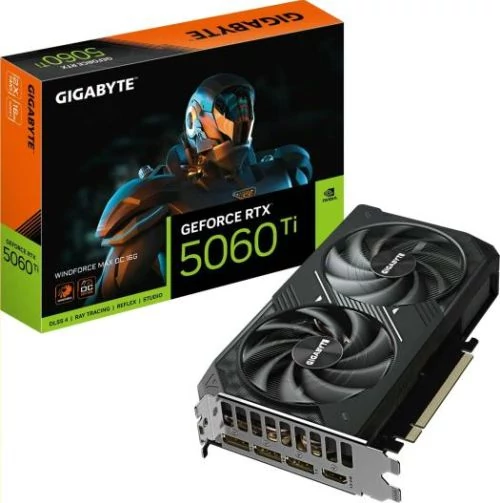

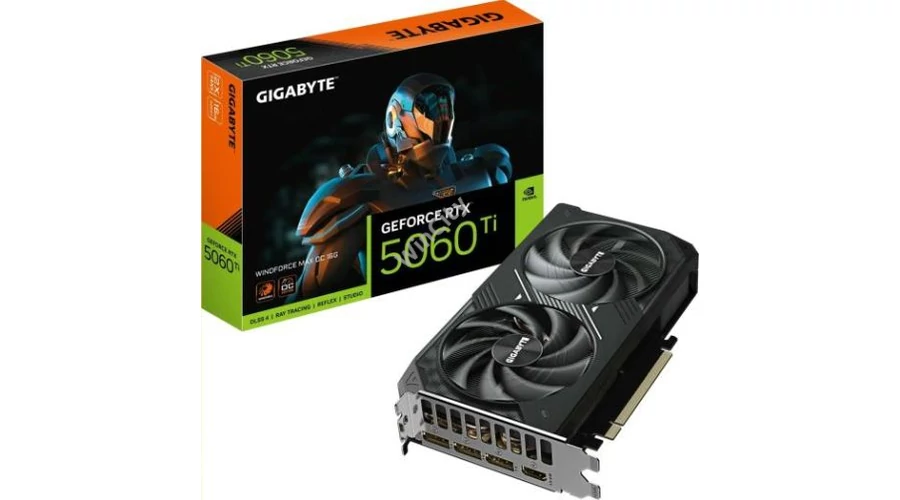

NVIDIA GeForce RTX 5060 Ti
Memory
8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/?s
clock Base
2407MHz
clock Boost
2587MHz
overclock
+15MHz Boost
Cooling
2x Axial-fan (90mm) with 0dB-zero-fan-mode
TDP/TGP
180W (NVIDIA)
Power connections
1x 8-Pin PCIe
Connectors
1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
Interface
PCIe 5.0 x8
Special features
Backplate, AI-acceleration, NVIDIA GeForce SFF-Ready
total height
Dual Slot
Dimensions
208x120x40mm (LxWxH)
Type
PCIe card (full height)
PCI slot bracket
full height
AI-computing power (dense)
379.5 TOPS (FP4), 189.75 TOPS (FP8), 94.87 TOPS (FP16)
AI-computing power (sparse)
759 TOPS (FP4), 379.5 TOPS (FP8), 189.74 TOPS (FP16)
GPU-Computing power
23.84 TFLOPS (FP16), 23.84 TFLOPS (FP32), 0.37 TFLOPS (FP64)
Chip-data
Chip-Architecture
Blackwell (from 2025/?Q1)
Chip-title
GB206 (GB206-300-A1)
Chip-Ausbau
Vollausbau (36/?36 SM)
Chip-Configuration
36 SM (4608 Shader /? 144 TMUs /? 48 ROPs), 36 RT Cores, 144 Tensor Cores, 32MiB L2 cache
Chip-Manufacturing Process
TSMC N5P (5nm) [NVIDIA 4N]
Chip size
181mm2, monolithisch, 21.9 Mrd. Transistoren
Chip-functions
Raytracing (4th Gen NVIDIA RTX, 72 TFLOPS), NVIDIA Tensor (5th Gen, 94.87 TOPS), HDCP 2.3
API-support
DirectX 12 Ultimate (12_2) /? CUDA 12.8 /? Vulkan 1.3 /? OpenCL 3.0 /? OpenGL 4.6 /? Shader Model 6.8
| Chipset típus | GeForce RTX 5060 |
| Garancia: | 36 hónap |
