Leírás és Paraméterek
Model

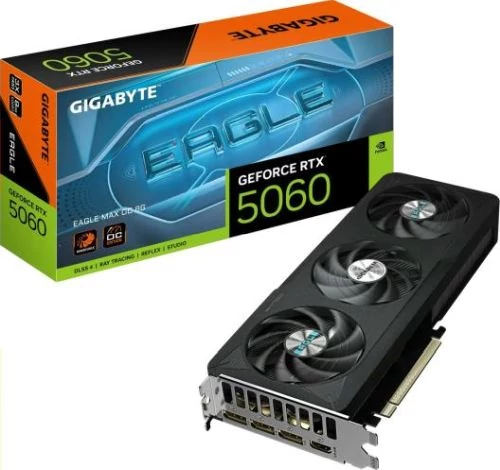

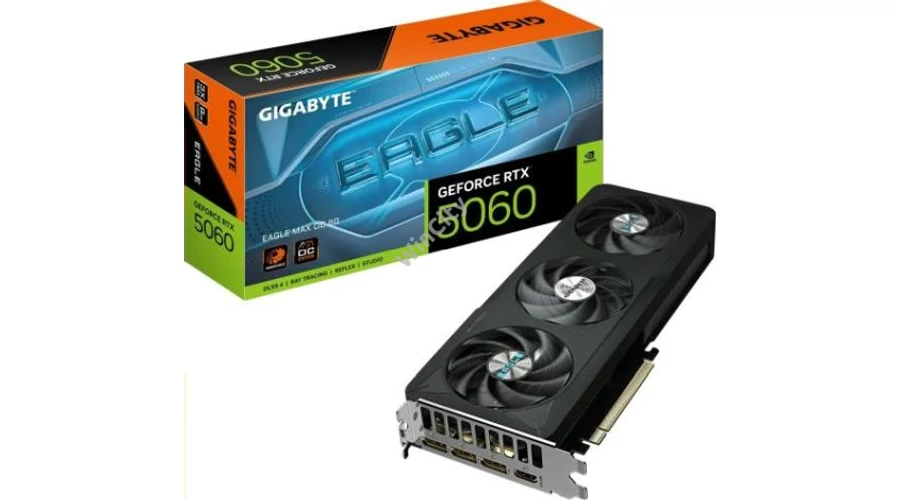

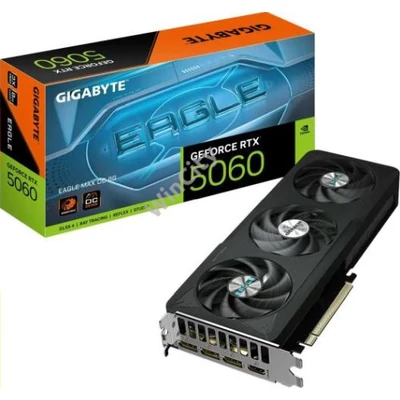

NVIDIA GeForce RTX 5060
Memory
8GB GDDR7, 128bit, 28Gbps, 1750MHz, 448GB/?s
clock Base
2280MHz
clock Boost
2550MHz
overclock
+53MHz Boost
Cooling
3x Axial-fan (80mm) with 0dB-zero-fan-mode
TDP/TGP
145W (NVIDIA)
Power connections
1x 8-Pin PCIe
Connectors
1x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
Interface
PCIe 5.0 x8
Special features
Backplate, AI-acceleration, NVIDIA GeForce SFF-Ready
total height
Dual Slot
Dimensions
281x115x40mm (LxWxH)
Type
PCIe card (full height)
PCI slot bracket
full height
AI-computing power (dense)
307 TOPS (FP4), 153.5 TOPS (FP8), 76.75 TOPS (FP16)
AI-computing power (sparse)
614 TOPS (FP4), 307 TOPS (FP8), 153.5 TOPS (FP16)
GPU-Computing power
19.58 TFLOPS (FP16), 19.58 TFLOPS (FP32), 0.31 TFLOPS (FP64)
Chip-data
Chip-Architecture
Blackwell (from 2025/?Q1)
Chip-title
GB206 (GB206-250-A1)
Chip-Ausbau
83.3% active Recheneinheiten (30/?36 SM)
Chip-Configuration
30 SM (3840 Shader /? 120 TMUs /? 48 ROPs), 30 RT Cores, 120 Tensor Cores, 32MiB L2 cache
Chip-Manufacturing Process
TSMC N5P (5nm) [NVIDIA 4N]
Chip size
181mm2, monolithisch, 21.9 Mrd. Transistoren
Chip-functions
Raytracing (4th Gen NVIDIA RTX, 48 TFLOPS), NVIDIA Tensor (5th Gen, 76.75 TOPS), HDCP 2.3
API-support
DirectX 12 Ultimate (12_2) /? CUDA 12.8 /? Vulkan 1.3 /? OpenCL 3.0 /? OpenGL 4.6 /? Shader Model 6.8
| Chipset típus | GeForce RTX 5060 |
| Garancia: | 36 hónap |
