Leírás és Paraméterek
Model

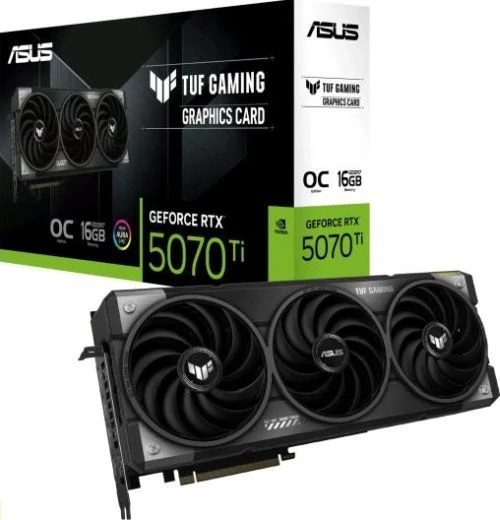

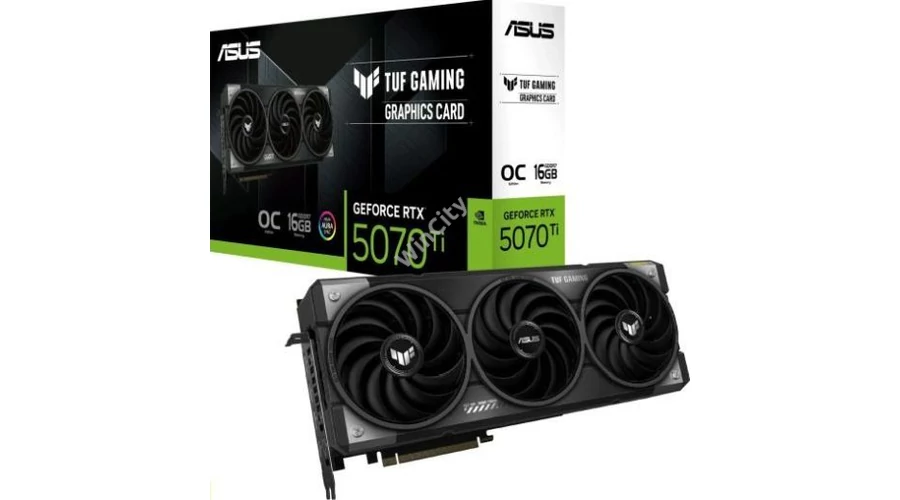

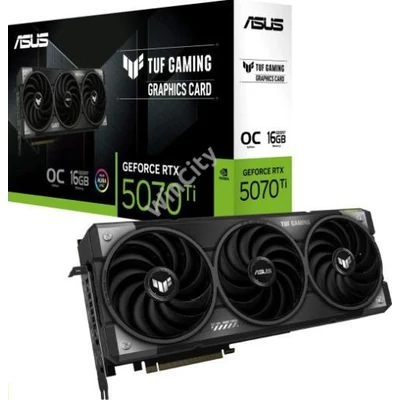

NVIDIA GeForce RTX 5070 Ti
Memory
16GB GDDR7, 256bit, 28Gbps, 1750MHz, 896GB/?s
clock Base
2300MHz (Standard-Profile)
clock Boost
2588MHz (Standard-Profile), 2610MHz (OC-Profile)
overclock
+160MHz Boost (OC-Profile), +138MHz Boost (Standard-Profile)
Cooling
3x Axial-fan (105mm) with 0dB-zero-fan-mode (up to 55°C)
TDP/TGP
300W (NVIDIA)
Power connections
1x 12V-2x6 (via adapter: 3x 8-Pin PCIe)
Connectors
2x HDMI 2.1b, 3x DisplayPort 2.1b UHBR20
Interface
PCIe 5.0 x16
Special features
Illumination (RGB), Backplate, Dual BIOS switch, AI-acceleration, Taktprofile (Default Mode/?OC Mode), Graphics Cards-Mounting (ASUS TUF Graphics Card Holder)
total height
Quad Slot (3.125 Slots)
Dimensions
329x140x62.5mm (LxWxH)
Type
PCIe card (full height)
PCI slot bracket
full height
AI-computing power (dense)
703 TOPS (FP4), 351.5 TOPS (FP8), 175.75 TOPS (FP16)
AI-computing power (sparse)
1406 TOPS (FP4), 703 TOPS (FP8), 351.5 TOPS (FP16)
GPU-Computing power
46.77 TFLOPS (FP16), 46.77 TFLOPS (FP32), 0.73 TFLOPS (FP64)
Chip-data
Chip-Architecture
Blackwell (from 2025/?Q1)
Chip-title
GB203 (GB203-300-A1)
Chip-Ausbau
83.3% active Recheneinheiten (70/?84 SM)
Chip-Configuration
70 SM (8960 Shader /? 280 TMUs /? 96 ROPs), 70 RT Cores, 280 Tensor Cores, 48MiB L2 cache
Chip-Manufacturing Process
TSMC N5P (5nm) [NVIDIA 4N]
Chip size
378mm2, monolithisch, 45.6 Mrd. Transistoren
Chip-functions
Raytracing (4th Gen NVIDIA RTX, 133 TFLOPS), NVIDIA Tensor (5th Gen, 175.75 TOPS), HDCP 2.3
API-support
DirectX 12 Ultimate (12_2) /? CUDA 12.8 /? Vulkan 1.3 /? OpenCL 3.0 /? OpenGL 4.6 /? Shader Model 6.8
Transcoding-Engine
2x NVENC (9th Gen, max. Sessions: 8), 1x NVDEC (6th Gen), Info
encoding
AV1 (YUV 4:2:0), H.265 (4K YUV 4:2:0 /? 4K YUV 4:2:2 /? 4K YUV 4:4:4 /? 4K Lossless /? 8K /? HEVC 10bit support /? HEVC B Frame support), H.264 (YUV 4:2:0 /? YUV 4:2:2 /? YUV 4:4:4 /? Lossless)
| Chipset típus | GeForce RTX5070TI |
| Garancia: | 36 hónap |
